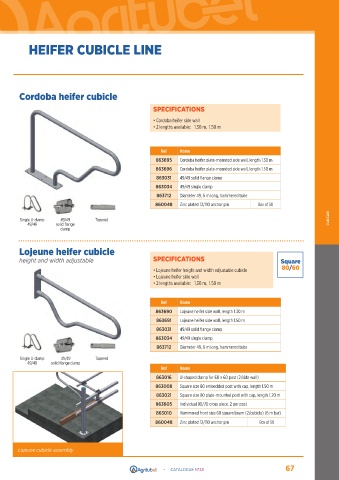

Page 67 - agritubel-catalogue

CUBICLES

HEIFER CUBICLE LINE

Cordoba heifer cubicle

SPECIFICATIONS

• Cordoba heifer side wall
• 2 lengths available: 1.30 m, 1.50 m

Ref Name
863695 Cordoba heifer plate-mounted side wall, length 1.30 m
863696 Cordoba heifer plate-mounted side wall, length 1.50 m
863031 49/49 solid flange clamp
863034 49/49 single clamp
863712 Diameter 49, 6 m long, hammered tube
860048 Zinc plated 12/110 anchor pin Box of 50

Single U-clamp 49/49 Tapered CUBICLES
49/49 solid flange
clamp

Lojeune heifer cubicle
height and width adjustable SPECIFICATIONS Square
• Lojeune heifer height and width adjustable cubicle 80/60
• Lojeune heifer side wall
• 2 lengths available: 1.30 m, 1.50 m

Ref Name
863690 Lojeune heifer side wall, length 1.30 m
863691 Lojeune heifer side wall, length 1.50 m
863031 49/49 solid flange clamp
863034 49/49 single clamp
863712 Diameter 49, 6 m long, hammered tube

Single U-clamp 49/49 Tapered
49/49 solid flange clamp
Ref Name
863016 U-shaped clamp for 60 x 60 post (2/side wall)
863008 Square size 80 embedded post with cap, length 1.50 m
863021 Square size 80 plate-mounted post with cap, length 1.20 m
863605 Individual 90/70 cross piece, 2 per post
863010 Hammered front size 60 square beam (2/cubicle) (6 m bar)
860048 Zinc plated 12/110 anchor pin Box of 50

Lojeune cubicle assembly

- CATALOGUE N°33 67
