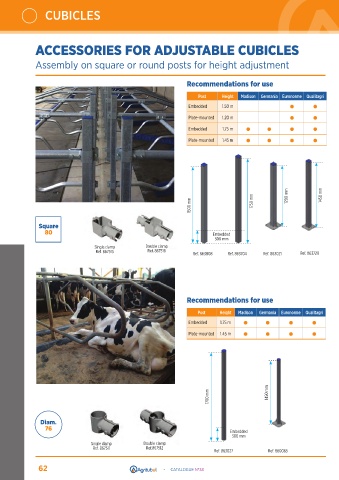

P. 62
CUBICLES
ACCESSORIES FOR ADJUSTABLE CUBICLES
Assembly on square or round posts for height adjustment
Recommendations for use
Post Height Madison Germania Euronorme Qualitagri
Embedded 1.50 m
Plate-mounted 1.20 m
Embedded 1.75 m
Plate-mounted 1.45 m
1500 mm 1750 mm 1200 mm 1450 mm
Square
80 Embedded
300 mm
Single clamp Double clamp
Ref. 867515 Ref. 867516 Ref. 863008 Ref. 863704 Ref. 863021 Ref. 863720
Recommendations for use
Post Height Madison Germania Euronorme Qualitagri
Embedded 1.75 m
Plate-mounted 1.45 m
1700 mm 1450 mm
Diam.
76
Embedded
300 mm
Single clamp Double clamp
Ref. 867511 Ref.867512
Ref. 863027 Ref. 860065
62 - CATALOGUE N°33
