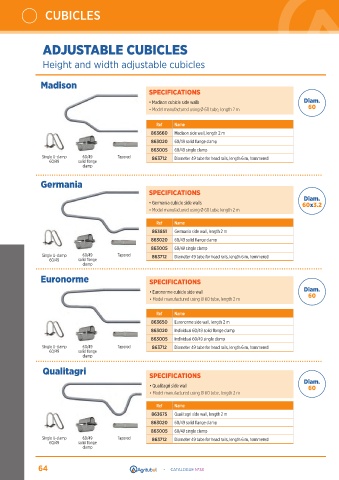

Page 64 - agritubel-catalogue

CUBICLES

ADJUSTABLE CUBICLES

Height and width adjustable cubicles

Madison
SPECIFICATIONS

• Madison cubicle side walls Diam.
• Model manufactured using Ø 60 tube, length 2 m 60

Ref Name
863660 Madison side wall, length 2 m
863020 60/49 solid flange clamp
863005 60/49 single clamp
Single U-clamp 60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m, hammered
60/49 solid flange
clamp

Germania
SPECIFICATIONS
Diam.
• Germania cubicle side walls 60x3.2
• Model manufactured using Ø 60 tube, length 2 m

Ref Name
863851 Germania side wall, length 2 m
863020 60/49 solid flange clamp
863005 60/49 single clamp
Single U-clamp 60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m, hammered
60/49 solid flange
clamp

Euronorme SPECIFICATIONS
Diam.
• Euronorme cubicle side wall
• Model manufactured using Ø 60 tube, length 2 m 60

Ref Name
863650 Euronorme side wall, length 2 m
863020 Individual 60/49 solid flange clamp
863005 Individual 60/49 single clamp
Single U-clamp 60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m, hammered
60/49 solid flange
clamp

Qualitagri SPECIFICATIONS

Diam.
• Qualitagri side wall 60
• Model manufactured using Ø 60 tube, length 2 m

Ref Name
863675 Qualitagri side wall, length 2 m
863020 60/49 solid flange clamp
863005 60/49 single clamp
Single U-clamp 60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m, hammered
60/49 solid flange
clamp

64 - CATALOGUE N°33
