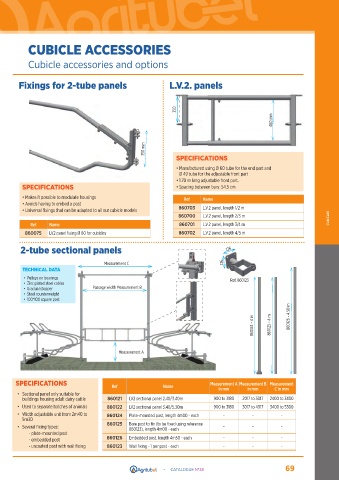

Page 69 - agritubel-catalogue

CUBICLES

CUBICLE ACCESSORIES

Cubicle accessories and options

Head rail support Fixings for 2-tube panels L.V.2. panels

350
480 mm

350 mm

SPECIFICATIONS
• Manufactured using Ø 60 tube for the end part and
Ø 49 tube for the adjustable front part
• 1.70 m long adjustable front part.
SPECIFICATIONS • Spacing between bars: 54.5 cm
• Makes it possible to modulate housings Ref Name
• Avoids having to embed a post
• Universal fixings that can be adapted to all our cubicle models 860703 L.V.2 panel, length 1/2 m
860700 L.V.2 panel, length 2/3 m CUBICLES
Ref Name 860701 L.V.2 panel, length 3/4 m
860075 LV2 panel fixing Ø 60 for cubicles 860702 L.V.2 panel, length 4/5 m

2-tube sectional panels 126

Measurement C 126
TECHNICAL DATA
• Pulleys on bearings Ref. 860123
• Zinc plated steel cables
• Gradual stopper Passage width Measurement B
• Steel counterweight
• 100*100 square post

860124 - 4 m 860125 - 4 m 860126 - 4.50 m
Advance limiter

Measurement A

SPECIFICATIONS Measurement A Measurement B Measurement
Ref Name in mm in mm C in mm
• Sectional panel only suitable for
buildings housing adult dairy cattle 860121 LV2 sectional panel 2.40/3.40m 900 to 3180 2017 to 3017 2400 to 3400
• Used to separate batches of animals 860122 LV2 sectional panel 3.40/5.30m 900 to 3180 3017 to 4917 3400 to 5300
• Width adjustable unit from 2m40 to 860124 Plate-mounted post, length 4m00 - each - - -
5m30
• Several fixing types: 860125 Bare post to fix (to be fixed using reference - - -
860123), length 4m00 - each
- plate-mounted post
- embedded post 860126 Embedded post, length 4m50 - each - - -
- uncoated post with wall fixing 860123 Wall fixing - 1 per post - each - - -

- CATALOGUE N°33 69
