OPEN AIR EQUIPMENT

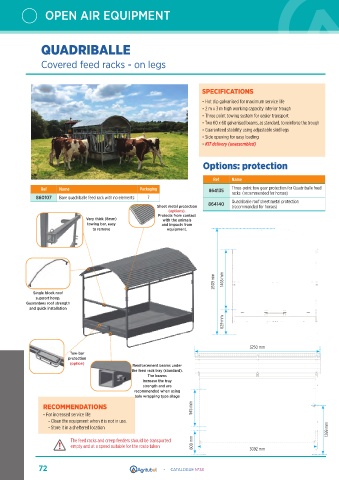

QUADRIBALLE

Covered feed racks - on legs

SPECIFICATIONS

• Hot dip galvanised for maximum service life
• 2 m x 3 m high working capacity interior trough
• Three point towing system for easier transport
• Two 60 x 60 galvanised beams, as standard, to reinforce the trough
• Guaranteed stability using adjustable skid legs
• Side opening for easy loading
• KIT delivery (unassembled)

Options: protection

Ref Name
Ref Name Packaging 864135 Three-point tow gear protection for Quadriballe feed
racks (recommended for horses)
860107 Bare quadriballe feed rack with no elements 7
864140 Quadriballe roof sheet metal protection
Sheet metal protection (recommended for horses)
(options).
Protects from contact
Very thick (8mm) with the animals
towing bar, easy and impacts from
to remove equipment.

2609 mm 1465 mm

Single block roof
support hoop.
Guarantees roof strength
and quick installation
629 mm

3250 mm
Tow-bar
protection
(option) Reinforcement beams under
the feed rack tray (standard).
The beams
increase the tray
strength and are
recommended when using
bale wrapping type silage
RECOMMENDATIONS 945 mm
• For increased service life:
- Clean the equipment when it is not in use.
- Store it in a sheltered location 1269 mm

The feed racks and creep feeders should be transported 600 mm
empty and at a speed suitable for the route taken 3092 mm
