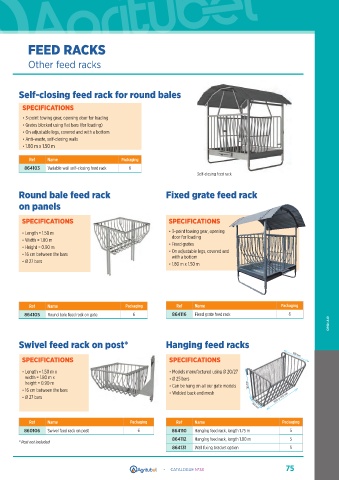

Page 75 - agritubel-catalogue

OPEN AIR EQUIPMENT

FEED RACKS

Other feed racks

Self-closing feed rack for round bales

SPECIFICATIONS
• 3-point towing gear, opening door for loading
• Grates blocked using flat bars (for loading)
• On adjustable legs, covered and with a bottom
• Anti-waste, self-closing walls
• 1.80 m x 1.50 m

Ref Name Packaging
864103 Variable wall self-closing feed rack 6
Self-closing feed rack

Round bale feed rack Fixed grate feed rack

on panels

SPECIFICATIONS SPECIFICATIONS
• Length = 1.50 m • 3-point towing gear, opening
• Width = 1.80 m door for loading
• Height = 0.90 m • Fixed grates
• 16 cm between the bars • On adjustable legs, covered and
with a bottom
Hooped shape - small model • Ø 27 bars • 1.80 m x 1.50 m

Ref Name Packaging Ref Name Packaging
864105 Round bale feed rack on gate 6 864116 Fixed grate feed rack 6
OPEN AIR

Swivel feed rack on post* Hanging feed racks

SPECIFICATIONS SPECIFICATIONS 580 mm

• Length = 1.50 m x • Models manufactured using Ø 20/27
width = 1.80 m x • Ø 25 bars
height = 0.90 m • Can be hung on all our gate models 760 mm
• 16 cm between the bars • Welded back and mesh
• Ø 27 bars 340 mm 1000 or 1750 mm

Ref Name Packaging Ref Name Packaging
860106 Swivel feed rack on post 6 864110 Hanging feed rack, length 1.75 m 5
864112 Hanging feed rack, length 1.00 m 5
* Post not included
864131 Wall fixing bracket option 5
