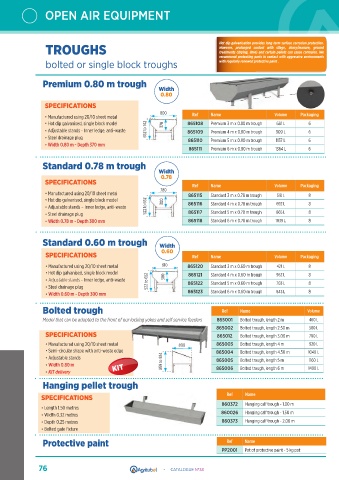

Page 76 - agritubel-catalogue

OPEN AIR EQUIPMENT

TROUGHS Hot dip galvanisation provides long term surface corrosion protection.
However, prolonged contact with silage, slurry/manure, ground
treatments (drying, lime) and certain pellets can cause corrosion. We
recommend protecting parts in contact with aggressive environments
bolted or single block troughs with regularly renewed protective paint .

Premium 0.80 m trough
Width
0.80
SPECIFICATIONS
800 Ref Name Volume Packaging
• Manufactured using 20/10 sheet metal
• Hot dip galvanised, single block model 370 865108 Premium 3 m x 0.80 m trough 681 L 6
• Adjustable stands - Inner ledge, anti-waste 652 to 742 865109 Premium 4 m x 0.80 m trough 909 L 6

• Steel drainage plug 865110 Premium 5 m x 0.80 m trough 1137 L 6
• Width 0.80 m - Depth 370 mm

865111 Premium 6 m x 0.80 m trough 1364 L 6
Standard 0.78 m trough
Width
0.78
SPECIFICATIONS Ref Name Volume Packaging
780
• Manufactured using 20/10 sheet metal 865115 Standard 3 m x 0.78 m trough 518 L 8
• Hot dip galvanised, single block model 300

• Adjustable stands – Inner ledge, anti-waste 522 to 652 865116 Standard 4 m x 0.78 m trough 692 L 8

• Steel drainage plug 865117 Standard 5 m x 0.78 m trough 865 L 8

• Width 0.78 m - Depth 300 mm 865118 Standard 6 m x 0.78 m trough 1039 L 8
Standard 0.60 m trough Width
SPECIFICATIONS 0.60 Ref Name Volume Packaging

• Manufactured using 20/10 sheet metal 610 865120 Standard 3 m x 0.60 m trough 421 L 8
• Hot dip galvanised, single block model 865121 Standard 4 m x 0.60 m trough 562 L 8
• Adjustable stands - Inner ledge, anti-waste 522 to 652 300 865122 Standard 5 m x 0.60 m trough 8
• Steel drainage plug 703 L

• Width 0.60 m - Depth 300 mm 865123 Standard 6 m x 0.60 m trough 843 L 8

Bolted trough Ref Name Volume
Model that can be adapted to the front of our locking yokes and self service feeders 865001 Bolted trough, length 2 m 460 L
865002 Bolted trough, length 2.50 m 580 L
SPECIFICATIONS 865012 Bolted trough, length 3.00 m 700 L

• Manufactured using 20/10 sheet metal 800 865003 Bolted trough, length 4 m 920 L
• Semi-circular shape with anti-waste edge 865004 Bolted trough, length 4.50 m 1040 L
• Adjustable stands 865005 Bolted trough, length 5 m 1160 L
• Width 0.80 m KIT 859 to 924 865006
• KIT delivery Bolted trough, length 6 m 1400 L
Hanging pellet trough

SPECIFICATIONS Ref Name
860372 Hanging calf trough - 1.00 m
• Length 1.50 metres
• Width 0.32 metres 860026 Hanging calf trough - 1.50 m
• Depth 0.25 metres 860373 Hanging calf trough - 2.00 m
• Bolted gate fixture

Protective paint Ref Name
PP2001 Pot of protective paint - 5 kg pot

76 - CATALOGUE N°33
