SHEEP AND GOAT EQUIPMENT

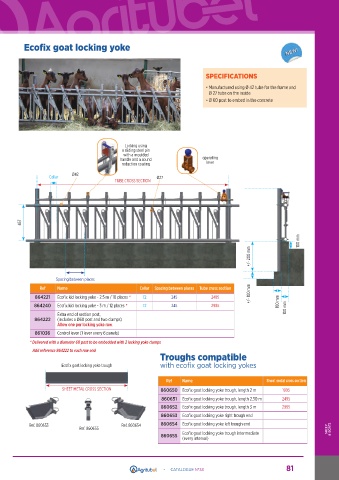

Ecofix goat locking yoke

SPECIFICATIONS
• Manufactured using Ø 42 tube for the frame and
Ø 27 tube on the inside
• Ø 60 post to embed in the concrete

Locking using
a sliding steel pin
with a moulded
handle and a sound operating
reduction coating lever

Ø42
Collar Ø27
TUBE CROSS SECTION

457

100 mm

+/- 200 mm

Spacing between places
Ref Name Collar Spacing between places Tube cross section
864221 Ecofix kid locking yoke - 2.5 m / 10 places * 72 245 2485 +/- 100 mm
864240 Ecofix kid locking yoke - 3 m / 12 places * 72 245 2985 100 mm 100 mm
Extra end of section post,
864222 (includes a Ø60 post and two clamps)
Allow one per locking yoke row.
861036 Control lever (1 lever every 6 panels)
* Delivered with a diameter 60 post to be embedded with 2 locking yoke clamps
Add reference 864222 to each row end
Troughs compatible

Ecofix goat locking yoke trough with ecofix goat locking yokes

Ref Name Sheet metal cross section
SHEET METAL CROSS SECTION 860650 Ecofix goat locking yoke trough, length 2 m 1995
860651 Ecofix goat locking yoke trough, length 2.50 m 2495
860652 Ecofix goat locking yoke trough, length 3 m 2995
860653 Ecofix goat locking yoke right trough end

Ref. 860653 Ref. 860654 860654 Ecofix goat locking yoke left trough end
Ref. 860655 SHEEP & GOATS
860655 Ecofix goat locking yoke trough intermediate
(every interval)

- CATALOGUE N°33 81
