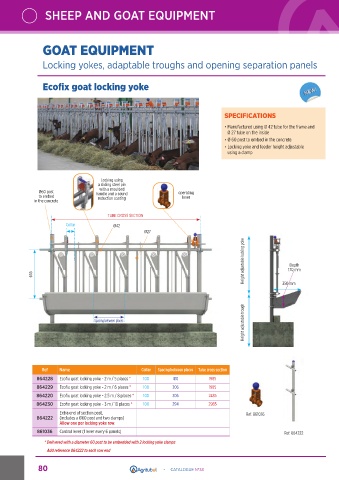

SHEEP AND GOAT EQUIPMENT

GOAT EQUIPMENT

Locking yokes, adaptable troughs and opening separation panels

Ecofix goat locking yoke

SPECIFICATIONS

• Manufactured using Ø 42 tube for the frame and
Ø 27 tube on the inside
• Ø 60 post to embed in the concrete
• Locking yoke and feeder height adjustable
using a clamp

Locking using
a sliding steel pin
with a moulded
Ø60 post handle and a sound operating
to embed lever
in the concrete reduction coating

TUBE CROSS SECTION
Collar Ø42
Ø27
Height adjustable locking yoke Depth

170 mm
655 350 mm

Height adjustable trough

Spacing between places

Ref Name Collar Spacing between places Tube cross section
864228 Ecofix goat locking yoke - 2 m / 5 places * 100 410 1985
864229 Ecofix goat locking yoke - 2 m / 6 places * 100 306 1985
864220 Ecofix goat locking yoke - 2.5 m / 8 places * 100 306 2485
864230 Ecofix goat locking yoke - 3 m / 10 places * 100 294 2985
Extra end of section post, Ref. 861036
864222 (includes a Ø60 post and two clamps)
Allow one per locking yoke row.
861036 Control lever (1 lever every 6 panels) Ref. 864222
* Delivered with a diameter 60 post to be embedded with 2 locking yoke clamps
Add reference 864222 to each row end
