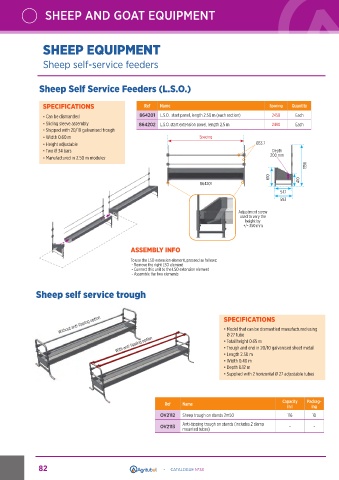

SHEEP AND GOAT EQUIPMENT

SHEEP EQUIPMENT

Sheep self-service feeders

Sheep Self Service Feeders (L.S.O.)

SPECIFICATIONS Ref Name Spacing Quantity

• Can be dismantled 864201 L.S.O. start panel, length 2.50 m (each section) 2450 Each
• Sliding sleeve assembly 864202 L.S.O. start extension panel, length 2.5 m 2490 Each
• Shipped with 20/10 galvanised trough
• Width 0.60 m Spacing
• Height adjustable Ø33.7
• Two Ø 34 bars Depth
• Manufactured in 2.50 m modules 200 mm
1358
610
864201 410
547
593

Adjustment screw
used to vary the
height by
+/- 350 mm

ASSEMBLY INFO
To use the LSO extension element, proceed as follows:
- Remove the right LSO element
- Connect this unit to the LSO extension element
- Assemble the two elements

Sheep self service trough

Without anti-tipping option SPECIFICATIONS

• Model that can be dismantled manufactured using

Ø 27 tube
With anti-tipping option • Total height 0.65 m
• Trough and end in 20/10 galvanised sheet metal
• Length 2.50 m
• Width 0.40 m
• Depth 0.12 m
• Supplied with 2 horizontal Ø 27 adjustable tubes

Ref Name Capacity Packag-
in l ing
OV2112 Sheep trough on stands 2m50 116 10
Anti-tipping trough on stands (includes 2 clamp
OV2113 mounted tubes) - -
