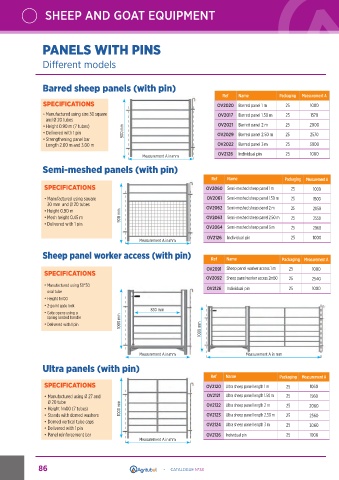

Page 86 - agritubel-catalogue

SHEEP AND GOAT EQUIPMENT

PANELS WITH PINS

Different models

Barred sheep panels (with pin)
Ref Name Packaging Measurement A
SPECIFICATIONS OV2020 Barred panel 1 m 25 1000

• Manufactured using size 30 square OV2017 Barred panel 1.50 m 25 1570

and Ø 20 tubes
• Height 0.90 m (7 tubes) OV2021 Barred panel 2 m 25 2000
• Delivered with 1 pin 900 mm OV2029 Barred panel 2.50 m 25 2570
• Strengthening panel bar
Length 2.00 m and 3.00 m OV2022 Barred panel 3 m 25 3000
OV2126 Individual pin 25 1000
Measurement A in mm
Semi-meshed panels (with pin)
Ref Name Packaging Measurement A

SPECIFICATIONS OV2060 Semi-meshed sheep panel 1 m 25 1000

• Manufactured using square OV2061 Semi-meshed sheep panel 1.50 m 25 1500
30 mm and Ø 20 tubes
• Height 0.90 m OV2062 Semi-meshed sheep panel 2 m 25 2050
• Mesh height 0.45 m 900 mm OV2063 Semi-meshed sheep panel 2.50 m 25 2550
• Delivered with 1 pin
OV2064 Semi-meshed sheep panel 3 m 25 2960
OV2126 Individual pin 25 1000
Measurement A in mm

Sheep panel worker access (with pin) Ref Name Packaging Measurement A

SPECIFICATIONS OV2091 Sheep panel worker access 1 m 25 1000
OV2092 Sheep panel worker access 2m50 25 2540
• Manufactured using 50*30 OV2126
oval tube Individual pin 25 1000
• Height 1m00
• 2-point gate lock
• Gate opens using a 830 mm
spring loaded handle
1000 mm
• Delivered with 1 pin 1000 mm

Measurement A in mm Measurement A in mm
Ultra panels (with pin)

Ref Name Packaging Measurement A
SPECIFICATIONS OV2120 Ultra sheep panel length 1 m 25 1060

• Manufactured using Ø 27 and OV2121 Ultra sheep panel length 1.50 m 25 1560
Ø 20 tube OV2122 Ultra sheep panel length 2 m
• Height 1m00 (7 tubes) 1000 mm 25 2060
• Stands with domed washers OV2123 Ultra sheep panel length 2.50 m 25 2560
• Domed vertical tube caps OV2124 Ultra sheep panel length 3 m
• Delivered with 1 pin 25 3060
• Panel reinforcement bar OV2126 Individual pin 25 1000
Measurement A in mm

86 - CATALOGUE N°33
