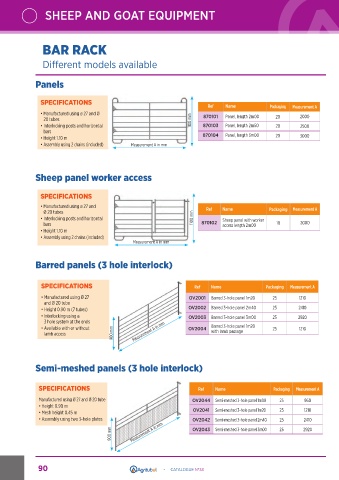

Page 90 - agritubel-catalogue

SHEEP AND GOAT EQUIPMENT

BAR RACK

Different models available

Panels

SPECIFICATIONS
Ref Name Packaging Measurement A
• Manufactured using ø 27 and Ø 870101 Panel, length 2m00 2000
20 tubes 1100 mm 20
• Interlocking posts and horizontal 870103 Panel, length 2m50 20 2500
bars
• Height 1.10 m 870104 Panel, length 3m00 20 3000
• Assembly using 2 chains (included) Measurement A in mm

Sheep panel worker access

SPECIFICATIONS

• Manufactured using ø 27 and Ref Name Measurement A
Ø 20 tubes Packaging
• Interlocking posts and horizontal 1100 mm Sheep panel with worker
bars 870102 access length 2m00 10 2000
• Height 1.10 m
• Assembly using 2 chains (included)
Measurement A in mm

Barred panels (3 hole interlock)

SPECIFICATIONS Ref Name Packaging Measurement A

• Manufactured using Ø 27 OV2001 Barred 3-hole panel 1m20 25 1210
and Ø 20 tube
• Height 0.90 m (7 tubes) OV2002 Barred 3-hole panel 2m40 25 2410
• Interlocking using a OV2003 Barred 3-hole panel 3m00 25 2920
3 hole system at the ends
• Available with or without OV2004 Barred 3-hole panel 1m20 25 1210
lamb access 900 mm Measurement A in mm with lamb passage

Semi-meshed panels (3 hole interlock)

SPECIFICATIONS Ref Name Packaging Measurement A

Manufactured using Ø 27 and Ø 20 tube OV2044 Semi-meshed 3-hole panel 1m00 25 960
• Height 0.90 m
• Mesh height 0.45 m OV2041 Semi-meshed 3-hole panel 1m20 25 1210
• Assembly using two 3-hole plates OV2042 Semi-meshed 3-hole panel 2m40 25 2410

900 mm Measurement A in mm OV2043 Semi-meshed 3-hole panel 3m00 25 2920

90 - CATALOGUE N°33
