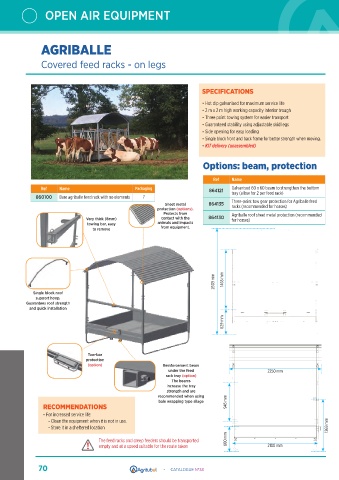

Page 70 - agritubel-catalogue

OPEN AIR EQUIPMENT

AGRIBALLE

Covered feed racks - on legs

SPECIFICATIONS

• Hot dip galvanised for maximum service life
• 2 m x 2 m high working capacity interior trough
• Three point towing system for easier transport
• Guaranteed stability using adjustable skid legs
• Side opening for easy loading
• Single block front and back frame for better strength when moving.

• KIT delivery (unassembled)

Options: beam, protection

Ref Name
Ref Name Packaging 864121 Galvanised 60 x 60 beam to strengthen the bottom
860100 Bare agriballe feed rack with no elements 7 tray (allow for 2 per feed rack)
Sheet metal 864135 Three-point tow gear protection for Agriballe feed
racks (recommended for horses)
protection (options).
Protects from Agriballe roof sheet metal protection (recommended
Very thick (8mm) contact with the 864130 for horses)
towing bar, easy animals and impacts
to remove from equipment.

2609 mm 1465 mm

Single block roof
support hoop.
Guarantees roof strength
and quick installation
629 mm

Tow-bar
protection
(option) Reinforcement beam
under the feed 2250 mm
rack tray (option)
The beams
increase the tray
strength and are
recommended when using 945 mm
bale wrapping type silage
RECOMMENDATIONS
• For increased service life:
- Clean the equipment when it is not in use.
- Store it in a sheltered location 1269 mm

The feed racks and creep feeders should be transported 600 mm
empty and at a speed suitable for the route taken 2100 mm

70 - CATALOGUE N°33
