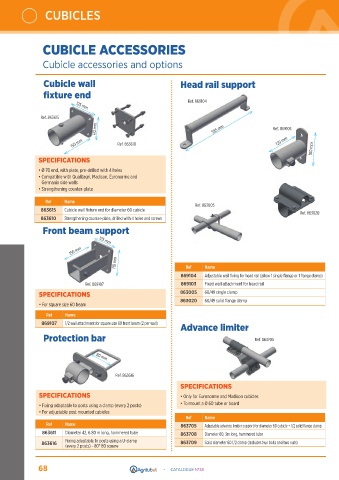

CUBICLES

CUBICLE ACCESSORIES

Cubicle accessories and options

Cubicle wall Head rail support
fixture end

Ref. 869104
125 mm
Ref. 863615
110 mm 585 mm Ref. 869103

150 mm Ref. 863610 120 mm
100 mm

SPECIFICATIONS

• Ø 70 end, with plate, pre-drilled with 4 holes
• Compatible with Qualitagri, Madison, Euronorme and
Germania side walls
• Strengthening counter-plate

Ref Name
Ref. 863005
863615 Cubicle wall fixture end for diameter 60 cubicle
Ref. 863020
863610 Strengthening counter-plate, drilled with 4 holes and screws
Front beam support

150 mm 125 mm
110 mm Ref Name

869104 Adjustable wall fixing for head rail (allow 1 single flange or 1 flange clamp)
Ref. 869107 869103 Fixed wall attachment for head rail
SPECIFICATIONS 863005 60/49 single clamp
863020 60/49 solid flange clamp
• For square size 60 beam
Ref Name
869107 1/2 wall attachment for square size 60 front beam (2 per wall)
Advance limiter
Protection bar Ref. 863705

80 mm

Ref. 863616
SPECIFICATIONS
SPECIFICATIONS • Only for Euronorme and Madison cubicles
• Fixing adaptable to posts using a clamp (every 2 posts) • To mount a Ø 60 tube or board
• For adjustable post mounted cubicles
Ref Name
Ref Name 863705 Adaptable advance limiter support for diameter 60 cubicle + 1/2 solid flange clamp
863611 Diameter 42, 6.80 m long, hammered tube 863708 Diameter 60, 3m long, hammered tube
863616 Fixing adaptable to posts using a U-clamp 863709 Solid diameter 60 1/2 clamp (Includes two bolts and two nuts)
(every 2 posts) - 80* 80 square
