CUBICLES

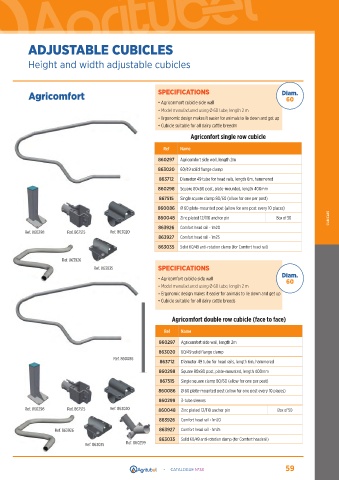

ADJUSTABLE CUBICLES

Height and width adjustable cubicles

Agricomfort SPECIFICATIONS Diam.
• Agriconmort cubicle side wall 60
• Model manufactured using Ø 60 tube, length 2 m
• Ergonomic design makes it easier for animals to lie down and get up
• Cubicle suitable for all dairy cattle breedm
Agriconfort single row cubicle

Ref Name
860297 Agricomfort side wall, length 2m
863020 60/49 solid flange clamp
863712 Diameter 49 tube for head rails, length 6m, hammered

860298 Square 80x80 post, plate-mounted, length 400mm
867515 Single square clamp 80/60 (allow for one per post)
860086 Ø 60 plate-mounted post (allow for one post every 10 places)
CUBICLES
860048 Zinc plated 12/110 anchor pin Box of 50
863926 Comfort head rail - 1m20
Ref. 860298 Ref. 867515 Ref. 863020
863927 Comfort head rail - 1m25
863035 Solid 60/49 anti-rotation clamp (for Comfort head rail)

Ref. 863926
Ref. 863035 SPECIFICATIONS
Diam.
• Agricomfort cubicle side wall 60
• Model manufactured using Ø 60 tube, length 2 m
• Ergonomic design makes it easier for animals to lie down and get up
• Cubicle suitable for all dairy cattle breeds

Agricomfort double row cubicle (face to face)

Ref Name
860297 Agricomfort side wall, length 2m
863020 60/49 solid flange clamp
Ref. 860086
863712 Diameter 49 tube for head rails, length 6m, hammered
860298 Square 80x80 post, plate-mounted, length 400mm
867515 Single square clamp 80/60 (allow for one per post)
860086 Ø 60 plate-mounted post (allow for one post every 10 places)
860299 3-tube sleeves
Ref. 860298 Ref. 867515 Ref. 863020 860048 Zinc plated 12/110 anchor pin Box of 50
863926 Comfort head rail - 1m20

Ref. 863926 863927 Comfort head rail - 1m25
863035 Solid 60/49 anti-rotation clamp (for Comfort head rail)
Ref. 863035 Ref. 860299

- CATALOGUE N°33 59
