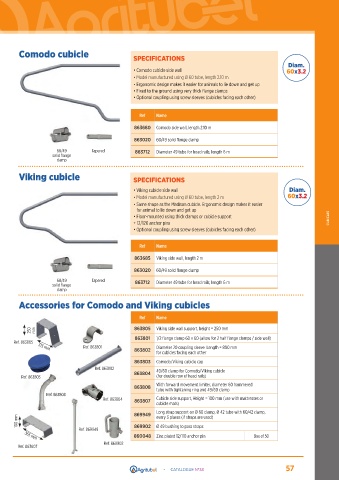

CUBICLES

Comodo cubicle SPECIFICATIONS

Diam.
• Comodo cubicle side wall 60x3.2
• Model manufactured using Ø 60 tube, length 2.10 m
• Ergonomic design makes it easier for animals to lie down and get up
• Fixed to the ground using very thick flange clamps
• Optional coupling using screw sleeves (cubicles facing each other)

Ref Name
863680 Comodo side wall, length 2.10 m

863020 60/49 solid flange clamp
60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m
solid flange
clamp
Viking cubicle SPECIFICATIONS

• Viking cubicle side wall Diam.
• Model manufactured using Ø 60 tube, length 2 m 60x3.2
• Same shape as the Madison cubicle. Ergonomic design makes it easier
for animal to lie down and get up
• Floor-mounted using thick clamps or cubicle support CUBICLES
+ 12/120 anchor pins
• Optional coupling using screw sleeves (cubicles facing each other)

Ref Name

863685 Viking side wall, length 2 m
863020 60/49 solid flange clamp

60/49 Tapered 863712 Diameter 49 tube for head rails, length 6 m
solid flange
clamp

Accessories for Comodo and Viking cubicles

Ref Name

250 mm 863805 Viking side wall support, height = 250 mm
863801 1/2 flange clamp 60 x 60 (allow for 2 half flange clamps / side wall)
Ref. 863805
Ref. 863801 Diameter 70 coupling sleeve Length = 800 mm
313 mm
863802 for cubicles facing each other
863803 Comodo/Viking cubicle cap
Ref. 863802 49/60 clamp for Comodo/Viking cubicle
863804
Ref. 863803 (for double row of head rails)
863808 With forward movement limiter, diameter 60 hammered
tube with tightening ring and 49/60 clamp
Ref. 863808
Ref. 863804 863807 Cubicle side support, Height = 100 mm (use with mattresses or
cubicle mats)
Long strap support on Ø 60 clamp, Ø 42 tube with 60/42 clamp,
869949 every 3 places (if straps are used)
100 mm
Ref. 869949 869902 Ø 49 bushing to pass straps
860048 Zinc plated 12/110 anchor pin Box of 50
365 mm
Ref. 869902
Ref. 863807

- CATALOGUE N°33 57
