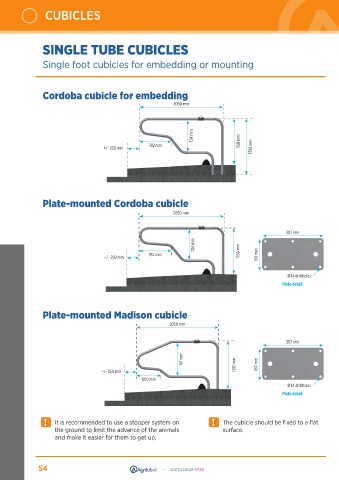

P. 54

CUBICLES





                SINGLE TUBE CUBICLES


                Single foot cubicles for embedding or mounting





                Cordoba cubicle for embedding
                                                              2050 mm




                                                                     724 mm

                                                     782 mm                          1150 mm
                                     +/- 250 mm                                          1398 mm









                Plate-mounted Cordoba cubicle

                                                              2050 mm


                                                                                                      307 mm
                                                                     724 mm

                                                     782 mm                          1150 mm  160 mm
                                      +/- 250 mm


                                                                                                      Ø 14 drill holes
                                                                                                    Plate detail




                Plate-mounted Madison cubicle
                                                             2050 mm


                                                                                                      307 mm


                                                                 811 mm                    160 mm

                                     +/- 250 mm                                     1210 mm
                                                   600 mm
                                                                                                      Ø 14 drill holes
                                                                                                    Plate detail



                 !  It is recommended to use a stopper system on           !   The cubicle should be fixed to a flat
                    the ground to limit the advance of the animals             surface.
                    and make it easier for them to get up.





               54                                         -     CATALOGUE N°33
