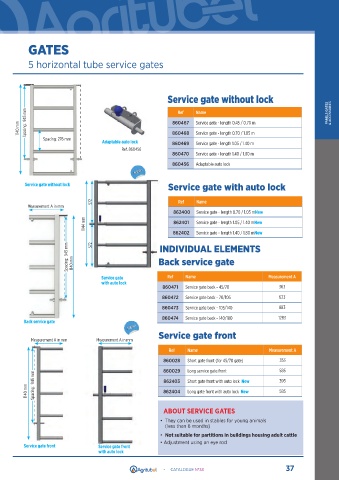

P. 37
PANELS GATES & ACCESSORIES
GATES
5 horizontal tube service gates
Service gate without lock
Spacing: 945 mm 860467 Name PANELS GATES & ACCESSORIES
Ref
Service gate - length 0.45 / 0.70 m
1140 mm 860468 Service gate - length 0.70 / 1.05 m
Spacing: 276 mm
Adaptable auto lock 860469 Service gate - length 1.05 / 1.40 m
Ref. 860456
860470 Service gate - length 1.40 / 1.80 m
860456 Adaptable auto lock
Service gate with auto lock
Service gate without lock
572 Ref Name
Measurement A in mm
862400 Service gate - length 0.70 / 1.05 mNew
1144 mm 862401 Service gate - length 1.05 / 1.40 mNew
862402 Service gate - length 1.40 / 1.80 mNew
INDIVIDUAL ELEMENTS
Spacing: 945 mm 1140 mm 572 Back service gate
Service gate Ref Name Measurement A
with auto lock
860471 Service gate back - 45/70 363
860472 Service gate back - 70/105 623
860473 Service gate back - 105/140 883
860474 Service gate back - 140/180 1283
Back service gate
Service gate front
Measurement A in mm Measurement A in mm
Ref Name Measurement A
860028 Short gate front (for 45/70 gate) 353
860029 Long service gate front 585
Spacing: 945 mm 862403 Short gate front with auto lock New 395
1140 mm 862404 Long gate front with auto lock New 585
ABOUT SERVICE GATES
• They can be used in stables for young animals
(less than 6 months)
• Not suitable for partitions in buildings housing adult cattle
• Adjustment using an eye rod
Service gate front Service gate front
with auto lock
- CATALOGUE N°33 37
