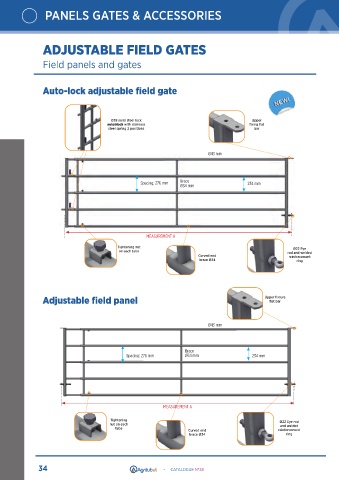

PANELS GATES & ACCESSORIES

ADJUSTABLE FIELD GATES

Field panels and gates

Auto-lock adjustable field gate

Ø28 solid steel lock Upper
autoblock with stainless fixing flat
steel spring 2 positions bar

Ø43 mm

Spacing: 276 mm Brace 234 mm
Ø34 mm

MEASUREMENT A

Tightening nut Ø22 Eye
on each tube rod and welded
Curved end reinforcement
brace Ø34 ring

Adjustable field panel Upper fixture
flat bar

Ø43 mm

Brace
Spacing: 276 mm Ø34 mm 234 mm

MEASUREMENT A

Tightening Ø22 Eye rod
nut on each and welded
tube
Curved end reinforcement
brace Ø34 ring
