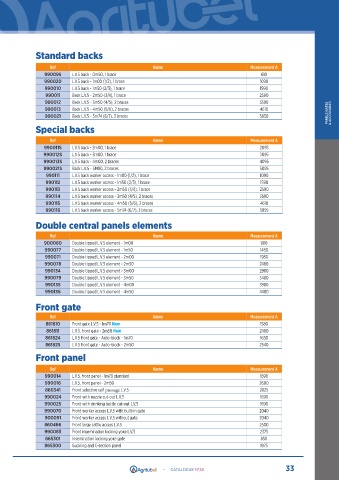

PANELS GATES & ACCESSORIES

Standard backs

Ref Name Measurement A
990095 L.V.5 back - 0m50, 1 brace 610
990020 L.V.5 back - 1m00 (1/2), 1 brace 1090
990010 L.V.5 back - 1m50 (2/3), 1 brace 1590
990011 Back L.V.5 - 2m50 (3/4), 1 brace 2590
990012 Back L.V.5 - 3m50 (4/5), 2 braces 3590
990013 Back L.V.5 - 4m50 (5/6), 2 braces 4610 & ACCESSORIES
990021 Back L.V.5 - 5m74 (6/7), 3 braces 5850 PANELS GATES
Special backs

Ref Name Measurement A
990011S L.V.5 back - 2m00, 1 brace 2095
990012S L.V.5 back - 3m00, 1 brace 3095
990013S L.V.5 back - 4m00, 2 braces 4095
990021S Back L.V.5 - 5M00, 2 braces 5095
990111 L.V.5 back worker access - 1m00 (1/2), 1 brace 1090
990112 L.V.5 back worker access - 1m50 (2/3), 1 brace 1590
990113 L.V.5 back worker access - 2m50 (3/4), 1 brace 2590
990114 L.V.5 back worker access - 3m50 (4/5), 2 braces 3590
990115 L.V.5 back worker access - 4m50 (5/6), 2 braces 4610
990116 L.V.5 back worker access - 5m74 (6/7), 3 braces 5855

Double central panels elements

Ref Name Measurement A
900060 Double tipped L.V.5 element - 1m00 980
990077 Double tipped L.V.5 element - 1m50 1480
990071 Double tipped L.V.5 element - 2m00 1980
990078 Double tipped L.V.5 element - 2m50 2480
990134 Double tipped L.V.5 element - 3m00 2980
990079 Double tipped L.V.5 element - 3m50 3480
990135 Double tipped L.V.5 element - 4m00 3980
990136 Double tipped L.V.5 element - 4m50 4480

Front gate

Ref Name Measurement A
861810 Front gate L.V.5 - 1m70 New 1580
861811 L.V.5. front gate - 2m50 New 2480
861824 L.V.5 front gate - Auto-block - 1m70 1630
861825 L.V.5 front gate - Auto-block - 2m50 2540
Front panel

Ref Name Measurement A
990014 L.V.5. front panel - 1m70 standard 1690
990016 L.V.5. front panel - 2m50 2600
860341 Front selective calf passage L.V.5 2825
990024 Front with nozzle cut-out L.V.5 1690
990025 Front with drinking bottle cut-out L.V.5 1690
990070 Front worker access L.V.5 with built-in gate 2040
900091 Front worker access L.V.5 without gate 2040
860466 Front large cattle access L.V.5 2500
990085 Front insemination locking yoke L.V.5 2375
865301 Insemination locking yoke gate 850
865300 Suckling and C-section panel 1975

- CATALOGUE N°33 33
