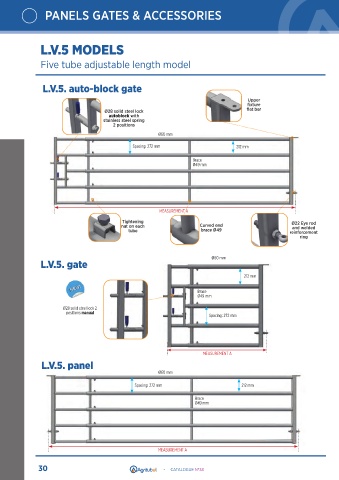

PANELS GATES & ACCESSORIES





               L.V.5 MODELS


               Five tube adjustable length model



                L.V.5. auto-block gate

                                                                                        Upper
                                                                                        fixture
                                      Ø28 solid steel lock                              flat bar
                                       autoblock with
                                     stainless steel spring
                                         2 positions
                                                         Ø60 mm

                                                Spacing: 272 mm                      212 mm
                                                                     Brace
                                                                     Ø49 mm








                                                         MEASUREMENT A
                                            Tightening                                                 Ø22 Eye rod
                                            nut on each                Curved end                       and welded
                                              tube                      brace Ø49                      reinforcement
                                                                                                          ring



                                                                           Ø60 mm
               L.V.5. gate

                                                                                       212 mm

                                                                      Brace
                                                                      Ø49 mm

                       Ø28 solid steel lock 2
                        positions manual
                                                                          Spacing: 272 mm






                                                                        MEASUREMENT A
                L.V.5. panel
                                                         Ø60 mm

                                                Spacing: 272 mm                       212 mm

                                                                     Brace
                                                                     Ø49 mm








                                                         MEASUREMENT A
