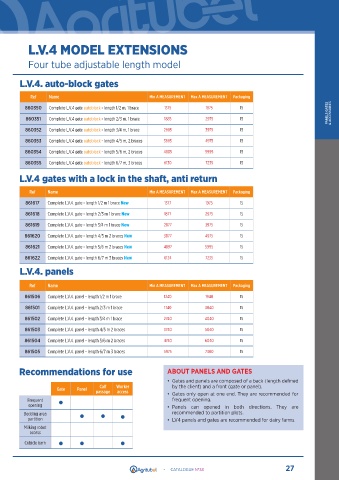

Page 27 - agritubel-catalogue

PANELS GATES & ACCESSORIES

L.V.4 MODEL EXTENSIONS

Four tube adjustable length model

L.V.4. auto-block gates

Ref Name Min A MEASUREMENT Max A MEASUREMENT Packaging
PANELS GATES & ACCESSORIES
860350 Complete L.V.4 gate autoblock - length 1/2 m, 1 brace 1375 1875 15
860351 Complete L.V.4 gate autoblock - length 2/3 m, 1 brace 1885 2975 15

860352 Complete L.V.4 gate autoblock - length 3/4 m, 1 brace 2885 3975 15
860353 Complete L.V.4 gate autoblock - length 4/5 m, 2 braces 3885 4975 15

860354 Complete L.V.4 gate autoblock - length 5/6 m, 2 braces 4885 5995 15
860355 Complete L.V.4 gate autoblock - length 6/7 m, 3 braces 6130 7235 15

L.V.4 gates with a lock in the shaft, anti return

Ref Name Min A MEASUREMENT Max A MEASUREMENT Packaging

861617 Complete L.V.4. gate - length 1/2 m 1 brace New 1377 1975 15
861618 Complete L.V.4. gate - length 2/3 m 1 brace New 1877 2975 15

861619 Complete L.V.4. gate - length 3/4 m 1 brace New 2877 3975 15
861620 Complete L.V.4. gate - length 4/5 m 2 braces New 3877 4975 15
861621 Complete L.V.4. gate - length 5/6 m 2 braces New 4897 5995 15

861622 Complete L.V.4. gate - length 6/7 m 3 braces New 6124 7235 15
L.V.4. panels

Ref Name Min A MEASUREMENT Max A MEASUREMENT Packaging
861506 Complete L.V.4. panel - length 1/2 m 1 brace 1240 1940 15

861501 Complete L.V.4. panel - length 2/3 m 1 brace 1740 3040 15
861502 Complete L.V.4. panel - length 3/4 m 1 brace 2740 4040 15

861503 Complete L.V.4. panel - length 4/5 m 2 braces 3740 5040 15
861504 Complete L.V.4. panel - length 5/6 m 2 braces 4740 6040 15
861505 Complete L.V.4. panel - length 6/7 m 3 braces 5975 7300 15

Recommendations for use ABOUT PANELS AND GATES

• Gates and panels are composed of a back (length defined
Gate Panel Calf Worker by the client) and a front (gate or panel).
passage access • Gates only open at one end. They are recommended for
Frequent frequent opening.
opening • Panels can opened in both directions. They are
Bedding area recommended to partition plots.
partition • LV4 panels and gates are recommended for dairy farms.
Milking robot
access
Cubicle barn
