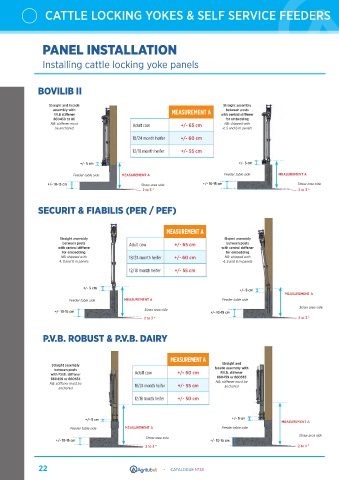

Page 22 - agritubel-catalogue

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

PANEL INSTALLATION

Installing cattle locking yoke panels

BOVILIB II

Straight and facade Straight assembly
assembly with MEASUREMENT A between posts
P.V.B stiffener with central stiffener
860459 or 86 for embedding
NB: stiffener must Adult cow +/- 65 cm NB: shipped with
be anchored 4, 5 and 6 m panels
18/24 month heifer +/- 60 cm
12/18 month heifer +/- 55 cm

+/- 5 cm +/- 5 cm

Feeder table side MEASUREMENT A Feeder table side MEASUREMENT A
+/- 10-15 cm Straw area side +/- 10-15 cm Straw area side
2 to 3 ° 2 to 3 °

SECURIT & FIABILIS (PER / PEF)

MEASUREMENT A
Straight assembly Sloped assembly
between posts Adult cow +/- 65 cm between posts
with central stiffener with central stiffener
for embedding for embedding
NB: shipped with 18/24 month heifer +/- 60 cm NB: shipped with
4, 5 and 6 m panels 4, 5 and 6 m panels
12/18 month heifer +/- 55 cm

+/- 5 cm
+/- 5 cm
MEASUREMENT A
Feeder table side MEASUREMENT A Feeder table side
Straw area side
+/- 10-15 cm Straw area side +/- 10-15 cm
2 to 3 ° 2 to 3 °

P.V.B. ROBUST & P.V.B. DAIRY

MEASUREMENT A
Straight and
Straight assembly facade assembly with
between posts
P.V.B. stiffener
with P.V.B. stiffener Adult cow +/- 60 cm 860459 or 860583
860459 or 860583
NB: stiffener must be 18/24 month heifer +/- 55 cm NB: stiffener must be
anchored
anchored
12/18 month heifer +/- 50 cm

+/- 5 cm +/- 5 cm
MEASUREMENT A
Feeder table side MEASUREMENT A Feeder table side
Straw area side
Straw area side
+/- 10-15 cm +/- 10-15 cm
2 to 3 ° 2 to 3 °

22 - CATALOGUE N°33
