CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

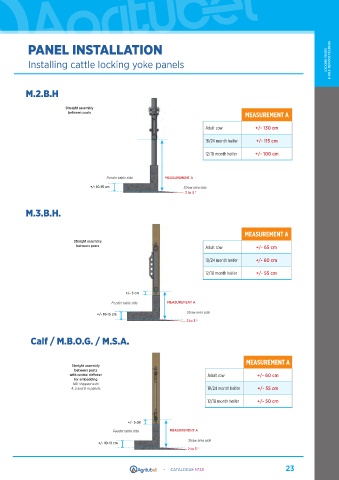

PANEL INSTALLATION

Installing cattle locking yoke panels LOCKING YOKES & SELF SERVICE FEEDERS

M.2.B.H

Straight assembly
between posts
MEASUREMENT A
Adult cow +/- 130 cm

18/24 month heifer +/- 115 cm

12/18 month heifer +/- 100 cm

Feeder table side MEASUREMENT A
+/- 10-15 cm Straw area side
2 to 3 °

M.3.B.H.

MEASUREMENT A
Straight assembly
between posts Adult cow +/- 65 cm

18/24 month heifer +/- 60 cm

12/18 month heifer +/- 55 cm

+/- 5 cm
Feeder table side MEASUREMENT A
+/- 10-15 cm Straw area side
2 to 3 °

Calf / M.B.O.G. / M.S.A.

MEASUREMENT A
Straight assembly
between posts
with central stiffener Adult cow +/- 60 cm
for embedding
NB: shipped with
4, 5 and 6 m panels 18/24 month heifer +/- 55 cm
12/18 month heifer +/- 50 cm

+/- 5 cm
Feeder table side MEASUREMENT A
Straw area side
+/- 10-15 cm
2 to 3 °

- CATALOGUE N°33 23
