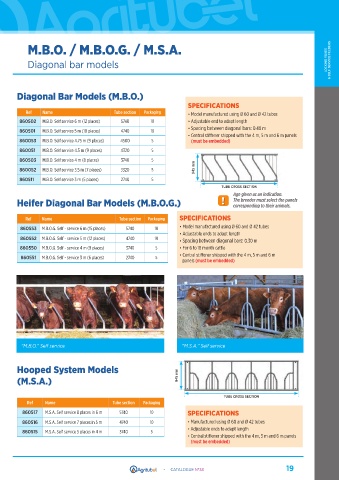

Page 19 - agritubel-catalogue

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

M.B.O. / M.B.O.G. / M.S.A.

Diagonal bar models LOCKING YOKES & SELF SERVICE FEEDERS

Diagonal Bar Models (M.B.O.)
SPECIFICATIONS
Ref Name Tube section Packaging • Model manufactured using Ø 60 and Ø 42 tubes
860502 M.B.O. Self service 6 m (12 places) 5740 10 • Adjustable end to adapt length
• Spacing between diagonal bars: 0.40 m
860501 M.B.O. Self service 5 m (10 places) 4740 10
• Central stiffener shipped with the 4 m, 5 m and 6 m panels
860053 M.B.O. Self service 4.75 m (9 places) 4500 5 (must be embedded)
860051 M.B.O. Self service 4.5 m (9 places) 4320 5
860503 M.B.O. Self service 4 m (8 places) 3740 5
860052 M.B.O. Self service 3.5 m (7 places) 3320 5 945 mm

860511 M.B.O. Self service 3 m (5 places) 2740 5
TUBE CROSS SECTION
Age given as an indication.
Heifer Diagonal Bar Models (M.B.O.G.) ! The breeder must select the panels
corresponding to their animals.

Ref Name Tube section Packaging SPECIFICATIONS
860553 M.B.O.G. Self - service 6 m (15 places) 5740 10 • Model manufactured using Ø 60 and Ø 42 tubes
• Adjustable ends to adapt length
860552 M.B.O.G. Self - service 5 m (12 places) 4740 10 • Spacing between diagonal bars: 0.30 m
860550 M.B.O.G. Self - service 4 m (9 places) 3740 5 • For 6 to 18 month cattle
• Central stiffener shipped with the 4 m, 5 m and 6 m
860551 M.B.O.G. Self - service 3 m (6 places) 2740 5
panels (must be embedded)

“M.B.O.” Self service “M.S.A.” Self service

Hooped System Models
(M.S.A.) 945 mm

TUBE CROSS SECTION
Ref Name Tube section Packaging
860517 M.S.A. Self service 8 places in 6 m 5740 10 SPECIFICATIONS
860516 M.S.A. Self service 7 places in 5 m 4740 10 • Manufactured using Ø 60 and Ø 42 tubes
• Adjustable ends to adapt length
860515 M.S.A. Self service 5 places in 4 m 3740 5
• Central stiffener shipped with the 4 m, 5 m and 6 m panels
(must be embedded)

- CATALOGUE N°33 19
