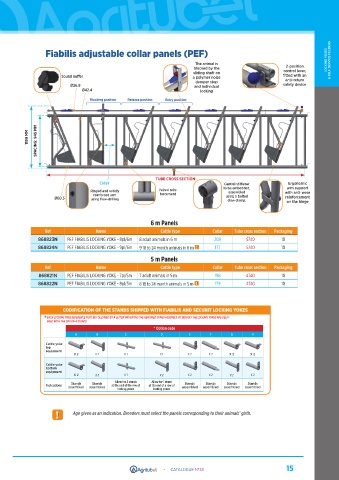

P. 15

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS






                 Fiabilis adjustable collar panels (PEF)

                                                                      The animal is                                 LOCKING YOKES  & SELF SERVICE FEEDERS
                                                                     blocked by the                  2-position
                                                                     sliding shaft on                control lever,
                       Sound buffer                                  a polymer noise                fitted with an
                                                                      damper stop                    anti-return
                          Ø26.9                                      and individual                  safety device
                              Ø42.4                                    locking
                                 Blocking position  Release position  Entry position




              SPACING: 945 MM
           1199 MM









                                                        TUBE CROSS SECTION
                                    Collar                                      Central stiffener     Ergonomic
                                                                                                      arm support
                                 Ringed and solidly      Paired rein-          to be embedded,       with anti-wear
                                                                                 assembled
                                  reinforced arm         forcement              using a bolted
                    Ø60.3        using flow-drilling                             claw clamp.         reinforcement
                                                                                                      on the hinge
                                                      6 m Panels
                 Ref               Name                  Cattle type        Collar  Tube cross section  Packaging
              868823N    PEF FIABILIS LOCKING YOKE - 8pl/6m  8 adult animals in 6 m  209  5740      10
              868824N    PEF FIABILIS LOCKING YOKE - 9pl/6m  9 18 to 24 month animals in 6 m  !  177  5740  10
                                                      5 m Panels
                 Ref               Name                  Cattle type        Collar  Tube cross section  Packaging
               868821N   PEF FIABILIS LOCKING YOKE - 7pl/5m  7 adult animals in 5 m  198  4740      10
              868822N    PEF FIABILIS LOCKING YOKE - 8pl/5m  8 18 to 24 month animals in 5 m  !  179  4740  10



                       CODIFICATION OF THE STANDS SHIPPED WITH FIABILIS AND SECURIT LOCKING YOKES
                 *   EACH LOCKING YOKE REFERENCE MUST BE FOLLOWED BY A LETTER INDICATING THE REQUIRED STAND ASSEMBLY. BY DEFAULT THE LOCKING YOKES ARE DELIV-

                  ERED WITH THE OPTION A STANDS.
                                                       * Option code
                           A       B         C           D         E       F      G      H
                 Cattle yoke
                 top
                 equipment
                           X 2    X 2        X 1         X 1       X 2    X 2     X 2    X 2
                 Cattle yoke
                 bottom
                 equipment
                           X 2     X 2       X 1         X 2       X 2    X 2     X 2    X 2
                                         Allow for 2 stands    Allow for 1 stand
                                                                         Stands
                                                                                        Stands
                                                                                 Stands
                                                                  Stands
                                 Stands
                          Stands
                 Indications  assembled  assembled  at the end of the row of   at the end of a row of   assembled  assembled  assembled  assembled
                                                       locking yokes
                                          locking yokes
                     !     Age given as an indication. Breeders must select the panels corresponding to their animals’ girth.






                                                          -     CATALOGUE N°33                        15
