CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

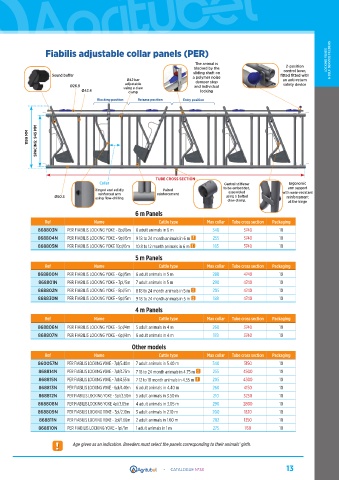

                 Fiabilis adjustable collar panels (PER)

                                                                      The animal is                                 LOCKING YOKES  & SELF SERVICE FEEDERS
                                                                     blocked by the                  2-position
                                                                     sliding shaft on                control lever,
                   Sound buffer                                      a polymer noise                fitted fitted with
                                              Ø42 bar                 damper stop                   an anti-return
                                             adjustable
                          Ø26.9             using a claw             and individual                  safety device
                              Ø42.4           clamp                    locking
                                   Blocking position  Release position  Entry position




              SPACING: 945 MM
           1199 MM









                                                        TUBE CROSS SECTION
                                    Collar                                      Central stiffener      Ergonomic
                                  Ringed and solidly      Paired               to be embedded,        arm support
                                   reinforced arm       reinforcement            assembled          with wear-resistant
                    Ø60.3         using flow-drilling                           using a bolted        reinforcement
                                                                                 claw clamp.          at the hinge
                                                 6 m Panels
                 Ref              Name                   Cattle type      Max collar  Tube cross section  Packaging
              868803N    PER FIABILIS LOCKING YOKE - 8pl/6m  8 adult animals in 6 m  340  5740     10
              868804N    PER FIABILIS LOCKING YOKE - 9pl/6m  9 18 to 24 month animals in 6 m  !  255  5740  10
              868805N    PER FIABILIS LOCKING YOKE 10pl/6m  10 8 to 12 month animals in 6 m  !  185  5740  10

                                                 5 m Panels
                 Ref              Name                   Cattle type      Max collar  Tube cross section  Packaging
              868800N    PER FIABILIS LOCKING YOKE - 6pl/5m  6 adult animals in 5 m  280  4740     10
               868801N   PER FIABILIS LOCKING YOKE - 7pl/5m  7 adult animals in 5 m  290  4740     10
              868802N    PER FIABILIS LOCKING YOKE - 8pl/5m  8 18 to 24 month animals in 5 m  !  205  4740  10
              868830N    PER FIABILIS LOCKING YOKE - 9pl/5m  9 18 to 24 month animals in 5 m  !  188  4740  10
                                                 4 m Panels
                 Ref              Name                   Cattle type      Max collar  Tube cross section  Packaging
              868806N    PER FIABILIS LOCKING YOKE - 5pl/4m  5 adult animals in 4 m  260  3740     10
              868807N    PER FIABILIS LOCKING YOKE - 6pl/4m  6 adult animals in 4 m  178  3740     10
                                               Other models
                 Ref              Name                   Cattle type      Max collar  Tube cross section  Packaging
              860057N    PER FIABILIS LOCKING YOKE - 7pl/5.40m  7 adult animals in 5.40 m  340  5150  10
               868814N   PER FIABILIS LOCKING YOKE - 7pl/4.75m  7 18 to 24 month animals in 4.75 m  !  255  4500  10
               868815N   PER FIABILIS LOCKING YOKE - 7pl/4.55m  7 12 to 18 month animals in 4.55 m  !  205  4300  10
               868813N   PER FIABILIS LOCKING YOKE - 6pl/4.40m  6 adult animals in 4.40 m  260  4150  10
               868812N   PER FIABILIS LOCKING YOKE - 5pl/3.50m 5 adult animals in 3.50 m  210  3250  10
              868808N    PER FIABILIS LOCKING YOKE 4pl/3.05m  4 adult animals in 3.05 m  290  2800  10
              868809N    PER FIABILIS LOCKING YOKE - 3pl/2.10m  3 adult animals in 2.10 m  200  1820  10
               868811N   PER FIABILIS LOCKING YOKE - 2pl/1.60m  2 adult animals in 1.60 m  202  1350  10
               868810N   PER FIABILIS LOCKING YOKE - 1pl/1m  1 adult animals in 1 m  275  760      10

                     !     Age given as an indication. Breeders must select the panels corresponding to their animals’ girth.
