CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

LOCKING YOKES & SELF SERVICE FEEDERS

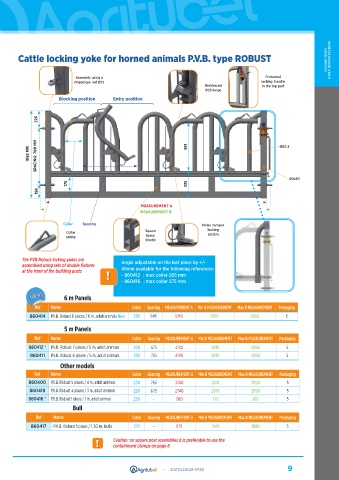

Cattle locking yoke for horned animals P.V.B. type ROBUST

Assembly using a Protected
ringed eye rod Ø22 locking handle
Reinforced in the top part
Ø25 hinge
Blocking position Entry position

226

SPACING: 700 MM
1082 MM 581 Ø60.3

80x80
175 335
156

MEASUREMENT A
MEASUREMENT B
Collar Spacing Noise damper
Collar Square locking
system
safety brace
80x80

The PVB Robust locking yokes are Angle adjustable on the last place by +/-
assembled using sets of double fixtures
! - 860412 *: max collar 265 mm
at the front of the building posts 45mm available for the following references:
- 860416 *: max collar 275 mm

6 m Panels

Ref Name Collar Spacing MEASUREMENT A Min B MEASUREMENT Max B MEASUREMENT Packaging
860414 P.V.B. Robust 8 places / 6 m, adult animals New 220 646 5740 5810 5850 5
5 m Panels

Ref Name Collar Spacing MEASUREMENT A Min B MEASUREMENT Max B MEASUREMENT Packaging
860412 * P.V.B. Robust 7 places / 5 m, adult animals 220 675 4740 4810 4850 5
860411 P.V.B. Robust 6 places / 5 m, adult animals 230 765 4740 4810 4850 5
Other models
Ref Name Collar Spacing MEASUREMENT A Min B MEASUREMENT Max B MEASUREMENT Packaging
860400 P.V.B. Robust 5 places / 4 m, adult animals 230 765 3740 3810 3850 5
860418 P.V.B. Robust 4 places / 3 m, adult animals 220 675 2740 2810 2850 5
860416 * P.V.B. Robust 1 place / 1 m, adult animal 230 - 700 770 810 5
Bull

Ref Name Collar Spacing MEASUREMENT A Min B MEASUREMENT Max B MEASUREMENT Packaging
860417 P.V.B. Robust 1 place / 1.30 m, bulls 370 - 970 1040 1080 5

! Caution: on square post assemblies it is preferable to use the
containment clamps on page 8
