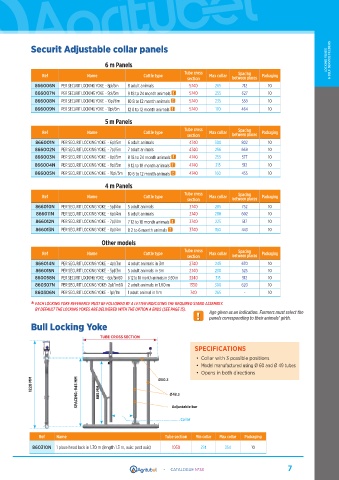

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

Securit Adjustable collar panels

6 m Panels LOCKING YOKES & SELF SERVICE FEEDERS
Tube cross Spacing
Ref Name Cattle type Max collar Packaging
section between places
866006N PER SECURIT LOCKING YOKE - 8pl/6m 8 adult animals 5740 265 712 10
866007N PER SECURIT LOCKING YOKE - 9pl/6m 9 18 to 24 month animals ! 5740 255 627 10
866008N PER SECURIT LOCKING YOKE - 10pl/6m 10 8 to 12 month animals ! 5740 235 558 10
866009N PER SECURIT LOCKING YOKE - 12pl/6m 12 8 to 12 month animals ! 5740 170 464 10

5 m Panels
Tube cross Spacing
Ref Name Cattle type Max collar Packaging
section between places
866001N PER SECURIT LOCKING YOKE - 6pl/5m 6 adult animals 4740 300 802 10
866002N PER SECURIT LOCKING YOKE - 7pl/5m 7 adult animals 4740 256 668 10
866003N PER SECURIT LOCKING YOKE - 8pl/5m 8 18 to 24 month animals ! 4740 255 577 10
866004N PER SECURIT LOCKING YOKE - 9pl/5m 9 12 to 18 month animals ! 4740 215 512 10
866005N PER SECURIT LOCKING YOKE - 10pl/5m 10 6 to 12 month animals ! 4740 160 455 10

4 m Panels
Tube cross Spacing
Ref Name Cattle type Max collar Packaging
section between places
866010N PER SECURIT LOCKING YOKE - 5pl/4m 5 adult animals 3740 285 752 10
866011N PER SECURIT LOCKING YOKE - 6pl/4m 6 adult animals 3740 280 602 10
866012N PER SECURIT LOCKING YOKE - 7pl/4m 7 12 to 18 month animals ! 3740 225 517 10
866013N PER SECURIT LOCKING YOKE - 8pl/4m 8 2 to 6 month animals ! 3740 150 443 10
Other models
Tube cross Spacing
Ref Name Cattle type Max collar Packaging
section between places
866014N PER SECURIT LOCKING YOKE - 4pl/3m 4 adult animals in 3m 2740 245 670 10
866015N PER SECURIT LOCKING YOKE - 5pl/3m 5 adult animals in 3m 2740 230 525 10
860058N PER SECURIT LOCKING YOKE - 6pl/3m60 6 12 to 18 month animals in 3.60 m 3340 315 512 10
860307N PER SECURIT LOCKING YOKE- 2pl/1m60 2 adult animals in 1.60 m 1350 300 620 10
860306N PER SECURIT LOCKING YOKE - 1pl/1m 1 adult animal in 1 m 740 265 - 10

* EACH LOCKING YOKE REFERENCE MUST BE FOLLOWED BY A LETTER INDICATING THE REQUIRED STAND ASSEMBLY.

BY DEFAULT THE LOCKING YOKES ARE DELIVERED WITH THE OPTION A ENDS (SEE PAGE 15). Age given as an indication. Farmers must select the
! panels corresponding to their animals’ girth.
Bull Locking Yoke

TUBE CROSS SECTION
SPECIFICATIONS

• Collar with 3 possible positions
• Model manufactured using Ø 60 and Ø 49 tubes
• Opens in both directions
SPACING: 945 MM 885 MM Ø48.3
1220 MM Ø60.3

Adjustable bar
Collar

Ref Name Tube section Min collar Max collar Packaging
860310N 1 place head lock in 1.30 m (length 1.3 m, axis: post axis) 1050 274 354 10

- CATALOGUE N°33 7
