CATTLE LOCKING YOKES & SELF SERVICE FEEDERS





 P.V.B.

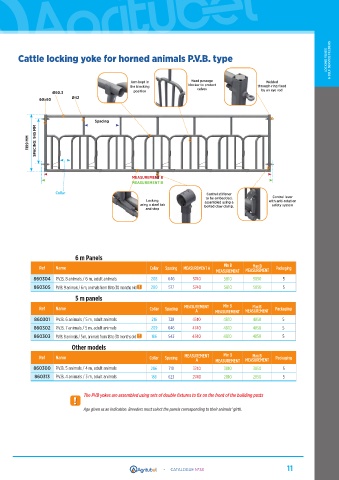

 Panels with locking at the bottom suitable for horned meat breeds  Cattle locking yoke for horned animals P.V.B. type  LOCKING YOKES  & SELF SERVICE FEEDERS



                                               Arm kept in          Head passage              Welded
                                               the blocking        blocker to protect       through-ring fixed
                                                                      calves
                   Ø60.3                        position                                     by an eye rod
               60x60      Ø42


                                  Spacing
               SPACING: 945 MM

           1199 MM






                                                MEASUREMENT B
                                                MEASUREMENT B
                     Collar                                               Central stiffener
                                                                         to be embedded,         Control lever
                                                    Locking              assembled using a     with anti-rotation
                                                  using a steel tab      bolted claw clamp.      safety system
                                                    and stop








                           6 m Panels
                                                                                Min B     Max B
               Ref   Name                             Collar  Spacing  MEASUREMENT A              Packaging
                                                                             MEASUREMENT  MEASUREMENT
             860304  P.V.B. 8 animals / 6 m, adult animals  208  646  5740      5810      5850      5
             860305  P.V.B. 9 animals / 6 m, animals from 18 to 30 months old  !    200  577  5740  5810  5850  5
                           5 m panels
                                                                               Min B
                                                                                          Max B
               Ref   Name                             Collar  Spacing  MEASUREMENT   MEASUREMENT  MEASUREMENT  Packaging
                                                                      A
             860301  P.V.B. 6 animals / 5 m, adult animals  216  728  4740      4810      4850      5
             860302  P.V.B. 7 animals / 5 m, adult animals  209  646  4740      4810      4850      5
             860303  P.V.B. 8 animals / 5 m, animals from 18 to 30 months old  !    186  543  4740  4810  4850  5
                          Other models
                                                                               Min B
                                                                                          Max B
               Ref   Name                             Collar  Spacing  MEASUREMENT   MEASUREMENT  MEASUREMENT  Packaging
                                                                      A
             860300  P.V.B. 5 animals / 4 m, adult animals  206  719  3740      3810      3850      5
             860313  P.V.B. 4 animals / 3 m, adult animals  186  623  2740      2810      2850      5


                           !  The PVB yokes are assembled using sets of double fixtures to fix on the front of the building posts

                              Age given as an indication. Breeders must select the panels corresponding to their animals’ girth.
