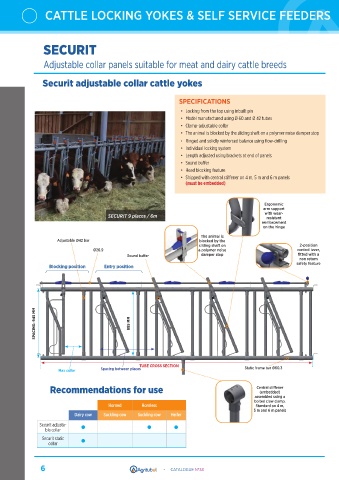

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

SECURIT

Adjustable collar panels suitable for meat and dairy cattle breeds

Securit adjustable collar cattle yokes

SPECIFICATIONS

• Locking from the top using inbuilt pin
• Model manufactured using Ø 60 and Ø 42 tubes
• Clamp-adjustable collar
• The animal is blocked by the sliding shaft on a polymer noise damper stop
• Ringed and solidly reinforced balance using flow-drilling
• Individual locking system
• Length adjusted using brackets at end of panels
• Sound buffer
• Head blocking feature
• Shipped with central stiffener on 4 m, 5 m and 6 m panels
(must be embedded)

Ergonomic
arm support
with wear-
SECURIT 9 places / 6m resistant
reinforcement
on the hinge
The animal is
Adjustable Ø42 bar blocked by the
sliding shaft on 2-position
Ø26.9 a polymer noise control lever,
Sound buffer damper stop fitted with a
non return
safety feature
Blocking position Entry position

SPACING: 945 MM 885 MM

TUBE CROSS SECTION Static frame bar Ø60.3
Max collar Spacing between places

Recommendations for use Central stiffener
(embedded)
assembled using a
bolted claw clamp.
Horned Hornless Standard on 4 m,
5 m and 6 m panels
Dairy cow Suckling cow Suckling cow Heifer
Securit adjusta-
ble collar
Securit static
collar

6 - CATALOGUE N°33
