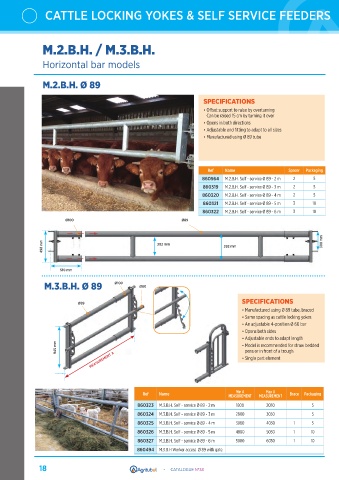

CATTLE LOCKING YOKES & SELF SERVICE FEEDERS

M.2.B.H. / M.3.B.H.

Horizontal bar models

M.2.B.H. Ø 89

SPECIFICATIONS
• Offset support to raise by overturning
Can be raised 15 cm by turning it over
• Opens in both directions
• Adjustable end fitting to adapt to all sizes
• Manufactured using Ø 89 tube

Ref Name Spacer Packaging
860564 M.2.B.H. Self - service Ø 89 - 2 m 2 5
860319 M.2.B.H. Self - service Ø 89 - 3 m 2 5
860320 M.2.B.H. Self - service Ø 89 - 4 m 2 5
860321 M.2.B.H. Self - service Ø 89 - 5 m 3 10
860322 M.2.B.H. Self - service Ø 89 - 6 m 3 10
Ø100 Ø89

498 mm 303 mm 392 mm 308 mm

510 mm
M.3.B.H. Ø 89 Ø100 Ø60

SPECIFICATIONS
Ø89
• Manufactured using Ø 89 tube, braced
• Same spacing as cattle locking yokes
• An adjustable 4-position Ø 60 bar
• Opens both sides
• Adjustable ends to adapt length
945 mm • Model is recommended for straw bedded
pens or in front of a trough
MEASUREMENT A • Single part element

Min A
Max A
Ref Name MEASUREMENT MEASUREMENT Brace Packaging
860323 M.3.B.H. Self - service Ø 89 - 2 m 1800 2030 5
860324 M.3.B.H. Self - service Ø 89 - 3 m 2800 3030 5
860325 M.3.B.H. Self - service Ø 89 - 4 m 3800 4030 1 5
860326 M.3.B.H. Self - service Ø 89 - 5 m 4800 5030 1 10
860327 M.3.B.H. Self - service Ø 89 - 6 m 5800 6030 1 10
860494 M.3.B.H Worker access Ø 89 with gate
