P. 26

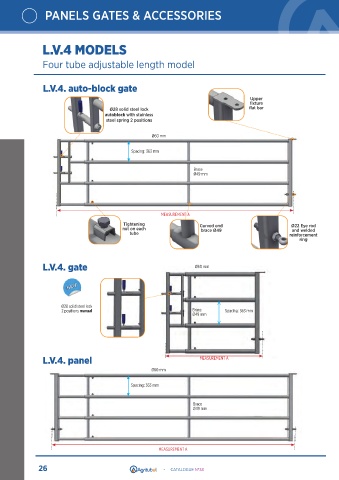

PANELS GATES & ACCESSORIES





                L.V.4 MODELS


                Four tube adjustable length model



                L.V.4. auto-block gate

                                                                                         Upper
                                                                                         fixture
                                        Ø28 solid steel lock                             flat bar
                                      autoblock with stainless
                                      steel spring 2 positions

                                                      Ø60 mm

                                               Spacing: 363 mm


                                                                     Brace
                                                                     Ø49 mm






                                                          MEASUREMENT A
                                            Tightening                 Curved end                      Ø22 Eye rod
                                            nut on each                 brace Ø49                       and welded
                                               tube                                                    reinforcement
                                                                                                          ring



                L.V.4. gate                                           Ø60 mm







                       Ø28 solid steel lock
                       2 positions manual                            Brace      Spacing: 363 mm
                                                                     Ø49 mm







                L.V.4. panel                                           MEASUREMENT A
                                                      Ø60 mm


                                               Spacing: 363 mm


                                                                     Brace
                                                                     Ø49 mm







                                                         MEASUREMENT A


               26                                         -     CATALOGUE N°33
