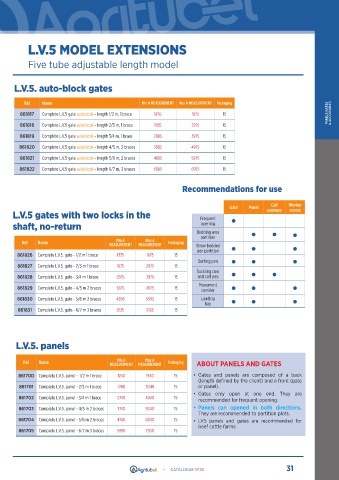

P. 31
PANELS GATES & ACCESSORIES
L.V.5 MODEL EXTENSIONS
Five tube adjustable length model
L.V.5. auto-block gates
Ref Name Min A MEASUREMENT Max A MEASUREMENT Packaging
861817 Complete L.V.5 gate autoblock - length 1/2 m, 1 brace 1370 1875 15 PANELS GATES & ACCESSORIES
861818 Complete L.V.5 gate autoblock - length 2/3 m, 1 brace 1885 2975 15
861819 Complete L.V.5 gate autoblock - length 3/4 m, 1 brace 2885 3975 15
861820 Complete L.V.5 gate autoblock - length 4/5 m, 2 braces 3885 4975 15
861821 Complete L.V.5 gate autoblock - length 5/6 m, 2 braces 4885 5975 15
861822 Complete L.V.5 gate autoblock - length 6/7 m, 3 braces 5885 6975 15
Recommendations for use
Calf
Gate Panel passage Worker
access
L.V.5 gates with two locks in the Frequent
shaft, no-return opening
Bedding area
partition
Max A
Min A
Ref Name MEASUREMENT MEASUREMENT Packaging Straw bedded
pen partition
861826 Complete L.V.5. gate - 1/2 m 1 brace 1375 1875 15
Sorting pen
861827 Complete L.V.5. gate - 2/3 m 1 brace 1875 2975 15
Suckling cow
861828 Complete L.V.5. gate - 3/4 m 1 brace 2875 3975 15 and calf pen
861829 Complete L.V.5. gate - 4/5 m 2 braces 3875 4975 15 Movement
corridor
861830 Complete L.V.5. gate - 5/6 m 2 braces 4895 5995 15 Loading
bay
861831 Complete L.V.5. gate - 6/7 m 3 braces 6135 8135 15
L.V.5. panels
Min A
Max A
Ref Name MEASUREMENT MEASUREMENT Packaging ABOUT PANELS AND GATES
861700 Complete L.V.5. panel - 1/2 m 1 brace 1240 1940 15 • Gates and panels are composed of a back
(length defined by the client) and a front (gate
861701 Complete L.V.5. panel - 2/3 m 1 brace 1740 3040 15 or panel).
• Gates only open at one end. They are
861702 Complete L.V.5. panel - 3/4 m 1 brace 2740 4040 15 recommended for frequent opening.
861703 Complete L.V.5. panel - 4/5 m 2 braces 3740 5040 15 • Panels can opened in both directions.
They are recommended to partition plots.
861704 Complete L.V.5. panel - 5/6 m 2 braces 4740 6040 15 • LV5 panels and gates are recommended for
beef cattle farms.
861705 Complete L.V.5. panel - 6/7 m 3 braces 5996 7300 15
- CATALOGUE N°33 31
