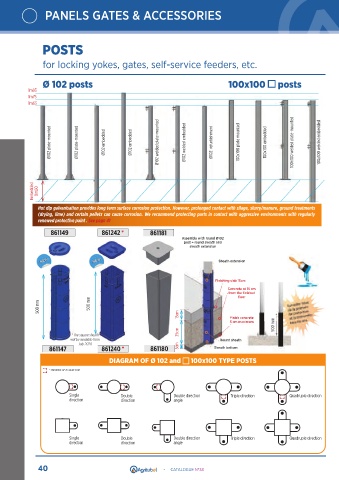

PANELS GATES & ACCESSORIES





                POSTS


                for locking yokes, gates, self-service feeders, etc.


                Ø 102 posts                                                      100x100   posts
           1m93
           1m75
           1m63




                   Ø102 plate-mounted  Ø102 plate-mounted  Ø102 embedded  Ø102 embedded  Ø102 welded plate-mounted  Ø102 welded embedded  Ø102  refurbishment  100x100 plate mounted  100x100 embedded  100x100 welded plate-mounted  100x100 welded embedded










             Embedded   0m50



              Hot dip galvanisation provides long term surface corrosion protection. However, prolonged contact with silage, slurry/manure, ground treatments
              (drying, lime) and certain pellets can cause corrosion. We recommend protecting parts in contact with aggressive environments with regularly
              renewed protective paint . See page 41
                   861149            861242 *         861181
                                                                 Assembly with round Ø102
                                                                  post + round sheath and
                                                                    sheath extension

                                                                              Sheath extension


                                                                             Finishing slab 15cm
                                                                                 Concrete at 15 cm
                                                                                 from the finished
                                                                                     floor
               500 mm            500 mm
                                                                15cm              Finish concrete
                                                                                  5 cm maximum   500 mm
                                                                35cm
                          * The square sheath
                          will be available from                              Round sheath
                             July 2020
                  861147             861240 *         861180    5cm         Sheath bottom
                                       DIAGRAM OF Ø 102 and            100x100 TYPE POSTS

                  = PRESENCE OF A CLEAR STUD



                         Single             Double            Double direction    Triple direction     Quadruple direction
                         direction          direction         angle






                         Single             Double            Double direction    Triple direction     Quadruple direction
                         direction          direction         angle
