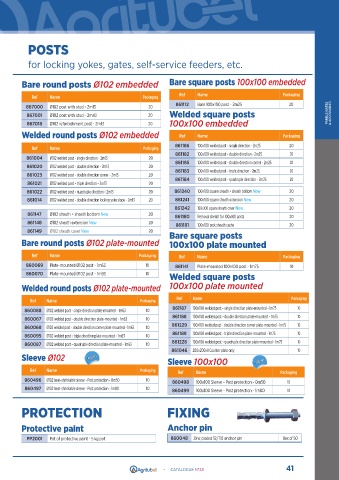

Page 41 - agritubel-catalogue

PANELS GATES & ACCESSORIES

POSTS

for locking yokes, gates, self-service feeders, etc.

Bare round posts Ø102 embedded Bare square posts 100x100 embedded

Ref Name Packaging Ref Name Packaging
867000 Ø102 post with stud - 2m13 20 861112 Bare 100x100 post - 2m25 20
867001 Ø102 post with stud - 2m43 20 Welded square posts PANELS GATES & ACCESSORIES
867018 Ø102 refurbishment post - 2m13 20 100x100 embedded
Welded round posts Ø102 embedded Ref Name Packaging

861186 100x100 welded post - single direction - 2m25 20
Ref Name Packaging
861182 100x100 welded post - double direction - 2m25 20
861004 Ø102 welded post - single direction - 2m13 20
861185 100x100 welded post - double direction corner - 2m25 20
861020 Ø102 welded post - double direction - 2m13 20
861183 100x100 welded post - triple direction - 2m25 20
861023 Ø102 welded post - double direction corner - 2m13 20
861184 100x100 welded post - quadruple direction - 2m25 20
861021 Ø102 welded post - triple direction - 2m13 20
861022 Ø102 welded post - quadruple direction - 2m13 20 861240 100x100 square sheath + sheath bottom New 20
861014 Ø102 welded post - double direction locking yoke slope - 2m13 20 861241 100x100 square sheath extension New 20
861242 100x100 square sheath cover New 20
861147 Ø102 sheath + sheath bottom New 20
861180 Removal sheath for 100x100 posts 20
861148 Ø102 sheath extension New 20 861181 100x100 post sheath cache 20
861149 Ø102 sheath cover New 20 Bare square posts
Bare round posts Ø102 plate-mounted 100x100 plate mounted

Ref Name Packaging Ref Name Packaging

860069 Plate-mounted Ø102 post - 1m63 10 861141 Plate-mounted 100x100 post - 1m75 10
860070 Plate-mounted Ø102 post - 1m93 10 Welded square posts

Welded round posts Ø102 plate-mounted 100x100 plate mounted

Ref Name Packaging Ref Name Packaging
860088 Ø102 welded post - single direction plate-mounted - 1m63 10 861187 100x100 welded post - single direction plate-mounted - 1m75 10
860067 Ø102 welded post - double direction plate-mounted - 1m63 10 861188 100x100 welded post - double direction plate-mounted - 1m75 10
861229 100x100 welded post - double direction corner plate-mounted - 1m75 10
860068 Ø102 welded post - double direction corner plate-mounted - 1m63 10
860095 Ø102 welded post - triple direction plate-mounted - 1m63 10 861189 100x100 welded post - triple direction plate-mounted - 1m75 10
860087 Ø102 welded post - quadruple direction plate-mounted - 1m63 10 861228 100x100 welded post - quadruple direction plate-mounted - 1m75 10
861046 200x200x8 Counter plate only 10
Sleeve Ø102 Sleeve 100x100

Ref Name Packaging Ref Name Packaging

860496 Ø102 heat-shrinkable sleeve - Post protection - 0m50 10 860498 100x100 Sleeve - Post protection - 0m50 10
860497 Ø102 heat-shrinkable sleeve - Post protection - 1m00 10 860499 100x100 Sleeve - Post protection - 1m00 10

PROTECTION FIXING

Protective paint Anchor pin

PP2001 Pot of protective paint - 5 kg pot 860048 Zinc plated 12/110 anchor pin Box of 50

- CATALOGUE N°33 41
