PANELS GATES & ACCESSORIES

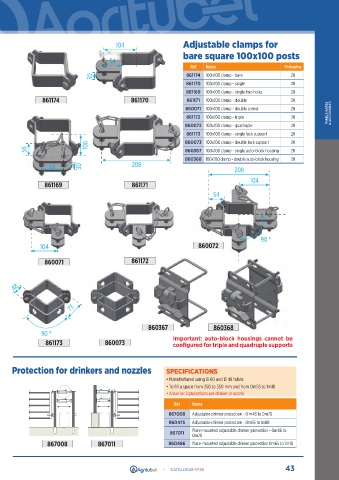

104 Adjustable clamps for
bare square 100x100 posts
54
Ref Name Packaging
30 861174 100x100 clamp - bare 20
861170 100x100 clamp - single 20
861169 100x100 clamp - single two holes 20
861174 861170 861171 100x100 clamp - double 20
860071 100x100 clamp - double corner 20 & ACCESSORIES
861172 100x100 clamp - triple 20 PANELS GATES
860072 100x100 clamp - quadruple 20
861173 100x100 clamp - single lock support 20
106 860073 100x100 clamp - double lock support 20
56 860367 100x100 clamp - single auto-block housing 20
860368 100x100 clamp - double auto-block housing 20
68 30 208 208

104
861169 861171
54

90 °
104 860072

860071 861172

48
33
73

REF 867008
860367 860368
90 ° Important: auto-block housings cannot be
861173 860073 configured for triple and quadruple supports

Protection for drinkers and nozzles SPECIFICATIONS
• Manufactured using Ø 60 and Ø 49 tubes
• To fill a space from 350 to 550 mm and from 0m55 to 1m10
• Allow for 2 protections per drinker or nozzle
REF 867008 REF 867011
Ref Name
867008 Adjustable drinker protection - 0 m46 to 0m70
860475 Adjustable drinker protection - 0m65 to 1m10
Plate-mounted adjustable drinker protection - 0m46 to
867011 0m70
867008 867011 860486 Plate-mounted adjustable drinker protection 0m65 to 1m10

- CATALOGUE N°33 43
REF 867011
