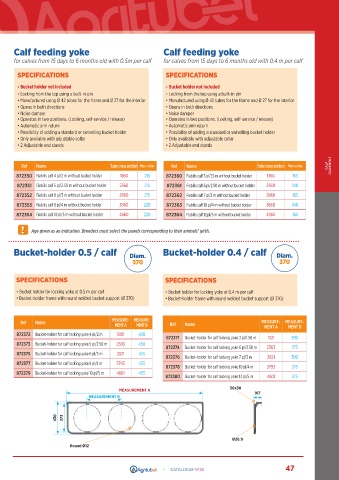

P. 47
CALF EQUIPMENT
Calf feeding yoke Calf feeding yoke
for calves from 15 days to 6 months old with 0.5m per calf for calves from 15 days to 6 months old with 0.4 m per calf
SPECIFICATIONS SPECIFICATIONS
• Bucket holder not included • Bucket holder not included
• Locking from the top using a built-in pin • Locking from the top using a built-in pin
• Manufactured using Ø 42 tubes for the frame and Ø 27 for the interior • Manufactured using Ø 42 tubes for the frame and Ø 27 for the interior
• Opens in both directions • Opens in both directions
• Noise damper • Noise damper
• Operates in two positions. (Locking, self-service / release) • Operates in two positions. (Locking, self-service / release)
• Automatic arm return • Automatic arm return
• Possibility of adding a standard or swivelling bucket holder • Possibility of adding a standard or swivelling bucket holder
• Only available with adjustable collar • Only available with adjustable collar
• 2 Adjustable end stands • 2 Adjustable end stands
Ref Name Tube cross section Max collar Ref Name Tube cross section Max collar CALF EQUIPMENT
872350 Fiabilis calf 4 pl/2 m without bucket holder 1860 215 872360 Fiabilis calf 3 pl/1.5 m without bucket holder 1360 155
872351 Fiabilis calf 5 pl/2.50 m without bucket holder 2360 215 872361 Fiabilis calf 6 pl/2.50 m without bucket holder 2360 140
872352 Fiabilis calf 6 pl/3 m without bucket holder 2860 215 872362 Fiabilis calf 7 pl/3 m without bucket holder 2860 155
872353 Fiabilis calf 8 pl/4 m without bucket holder 3860 220 872363 Fiabilis calf 10 pl/4 m without bucket holder 3860 140
872354 Fiabilis calf 10 pl/5 m without bucket holder 4860 220 872364 Fiabilis calf 12 pl/5 m without bucket holder 4860 155
! Age given as an indication. Breeders must select the panels corresponding to their animals’ girth.
Bucket-holder 0.5 / calf Diam. Bucket-holder 0.4 / calf Diam.
370 370
SPECIFICATIONS SPECIFICATIONS
• Bucket holder for locking yoke at 0.5 m per calf • Bucket holder for locking yoke at 0.4 m per calf
• Bucket-holder frame with round welded bucket support (Ø 370) • Bucket-holder frame with round welded bucket support (Ø 370)
Ref Name MEASURE- MEASURE- MEASURE- MEASURE-
MENT A MENT B Ref Name MENT A MENT B
872372 Bucket-holder for calf locking yoke 4 pl/2 m 1801 450
872371 Bucket-holder for calf locking yoke 3 pl/1.50 m 1321 390
872373 Bucket-holder for calf locking yoke 5 pl/2.50 m 2303 450
872374 Bucket-holder for calf locking yoke 6 pl/2.50 m 2303 375
872375 Bucket-holder for calf locking yoke 6 pl/3 m 2821 455
872376 Bucket-holder for calf locking yoke 7 pl/3 m 2821 390
872377 Bucket-holder for calf locking yoke 8 pl/4 m 3793 455
872378 Bucket-holder for calf locking yoke 10 pl/4 m 3793 375
872379 Bucket-holder for calf locking yoke 10 pl/5 m 4801 455
872380 Bucket-holder for calf locking yoke 12 pl/5 m 4801 375
MEASUREMENT A 30x30
107
MEASUREMENT B
430 373
Ø26.9
Round Ø12
- CATALOGUE N°33 47
